Magnesium anode Shaft 2.63 / 1.37inch
Article: B342350
| PCS | Discount | Price |
|---|---|---|
| 5 | 5 % | $ 1,182.75 /st |
| 10 | 10 % | $ 1,120.50 /st |
| 20 | 15 % | $ 1,058.25 /st |
| 50 | 20 % | $ 996.00 /st |
Product description
Product specification

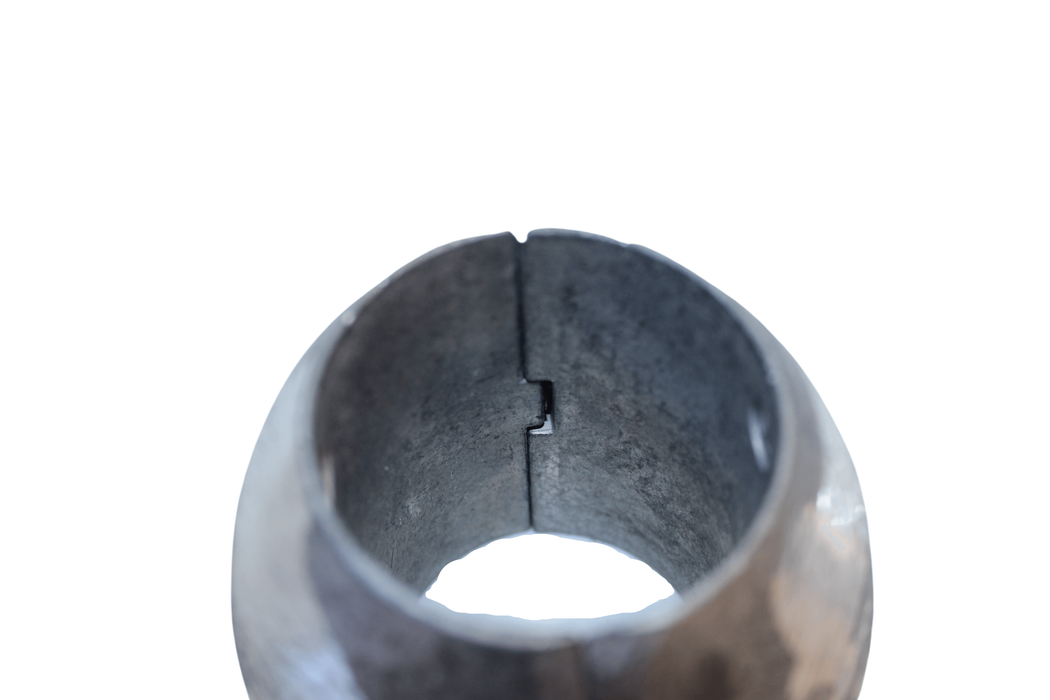

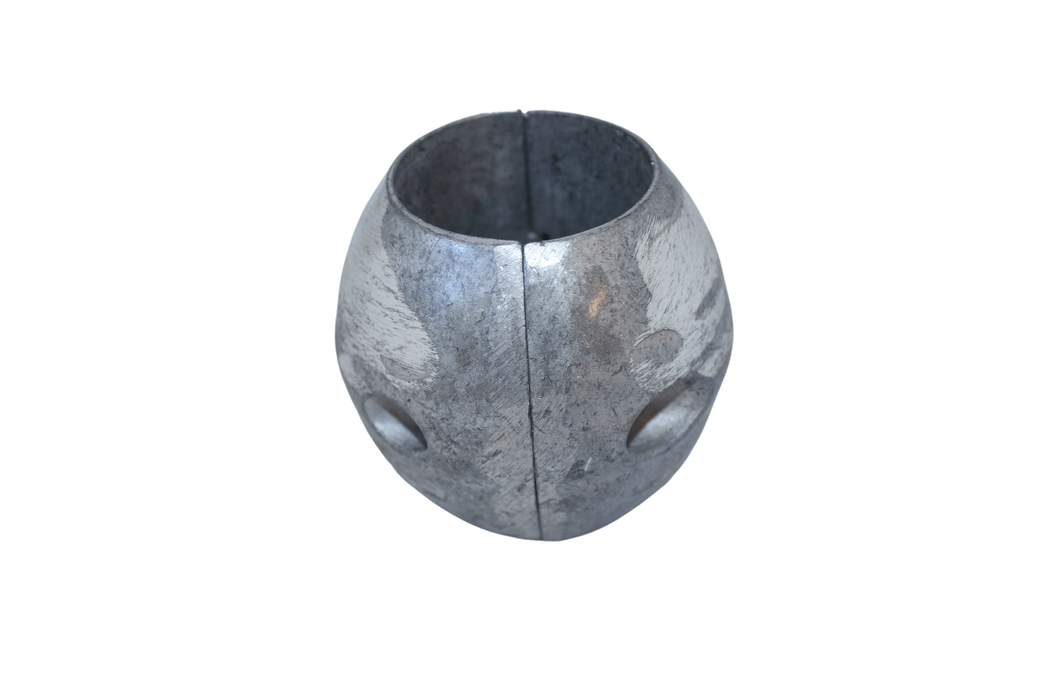

Shaft anode for 35mm propeller shaft, Magnesium
Material: Magnesium
Alloy : AZ 63B
Article: B342350
- Weight : 0.22 KG/0.49 lbs
- For propeller shaft: 35mm/1.38 inch
- Outer diameter: 67mm/2.64 inch
Application areas:
- Propeller shaft
- Round objects
Shaft anode for ship / boat
Magnesium is mainly used in brackish water and fresh water. Magnesium anodes can be used in brackish water if the resistivity exceeds about 1.0 Ωm.
With over 30 years of experience, you as a customer can always feel safe with our products. We manufacture everything according to international standards and industry guidelines. Each batch of anodes undergoes thorough testing and quality assurance, as it has been for over 30 years ...
Are you unsure of the type of material to use? Ask us, we can!
Technical data
- Capacity: 1230 Ah / kg(2711.68 Ah / lbs)
- Consumption: 13.3 kg / A year(29.32 lbs / A year)
- Efficiency: about 55%
- Potential: -1 500 mV rel Ag / AgCl in seawater
Typical chemical composition, AZ 63B (most common alloy in water), magnesium.
|
Material |
% of weight |
|
Aluminum (Al) |
min 5.3 max 6.7 |
|
Zinc (Zn) |
min 2.5 max 3.5 |
|
Manganese (Mn) |
> 0.3 |
|
Silicon (Si) |
~ 0.1 |
|
Copper (Cu) |
<0.05 |
|
Iron (Fe) |
<0.01 |
|
Magnesium |
Remaining |
Information
Protect your investments from corrosion, check the product description for more information.
